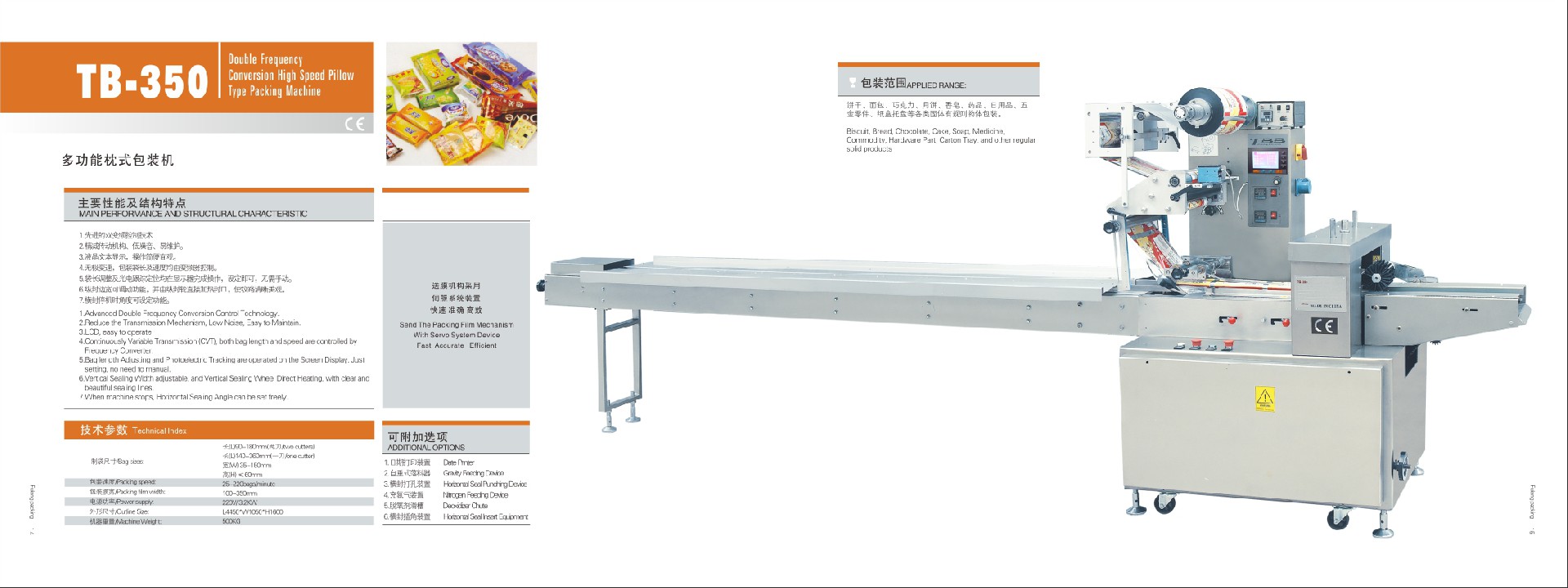

| 多功能枕式包装机 |
| 主要性能及结构特点 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
1.先进的双变频控制技术 2.精减传动机构、低噪音、易维护。 3.液晶文本显示，操作简便直观。 4.无极变速，包装袋长及速度均由变频器控制。 5.袋长调整及光电跟踪定位均在显示器完成操作，设定 即可，无需动手。 6.纵封边宽可调动功能，并由纵封轮直接加热封口，使 纹路清晰美观。 7.横封停机时角度可设定功能。 1.Advanced Double Frequency Conversion Control Technology. 2.Reduce the Transmission Mechanism, Low Noise，Easy to Maintain, 3.LCD, easy to operate 4.Continuously Variable Transmission (CVT), both bag length and speed are controlled by Frequency Converter. 5.Bag length Adjusting and Photoelectric Tracking are operated on the Screen Display. Just setting, no need to manual. 6.Vertical Sealing Wldth adjustable, and Vertical Sealing Wheel Direct Heating. with clear and beautiful sealing lines. 7.When machine stops, Horizontal Sealing Angle can be set freely.
|
送膜机构采用 伺服系统装置 快速 准确 高效
Send The Packing Film Mechanism With Servo System Device Fast Accurate Effticient |
| 技术参数 Technical Index | 可附加选项 ADDIMTIONAL OPTIONS | |
| 制袋尺寸/Bag sizes： | 长(L)90-180mm(两刀/two cutters) 长(L)140-360mm(一刀/one cutter) 宽(W) 35-150mm 高(H)≤60mm | 1.期打印装置 Date Pinter 2.自重式落料器 Gaity Feeding Device 3.横封打孔装 Horizontal Seal Punching Devibe 4.充氮气装置 Nitrogen Feedng Device 5.脱氧剂滑槽 Deoxidizer Chute 6.横封插角装置 Horizontal Seal Inser Equipment |
| 包装速度/Packing speed: | 25-220bags/minute | |
| 包装膜宽/Packing film width: | 100-350mm | |
| 电源功率/Pover suppy: | 220V/3.2KW | |
| 外形尺寸/Outline Size： | L4450*W1050*H1600 | |
| 机器重量Machine Weight: | 500KG |
| 包装范围APPLIE RANGE |
饼干、面包、巧克力、月饼、香皂、药品、日用品、五金零件、纸盒托盘等各类固体有规则物体包装。 Biscuit,Bread, Chocolate, Cake Soap, Medcine,Comodity. Hardware Part, Carton Tray, and other regular solid products |
