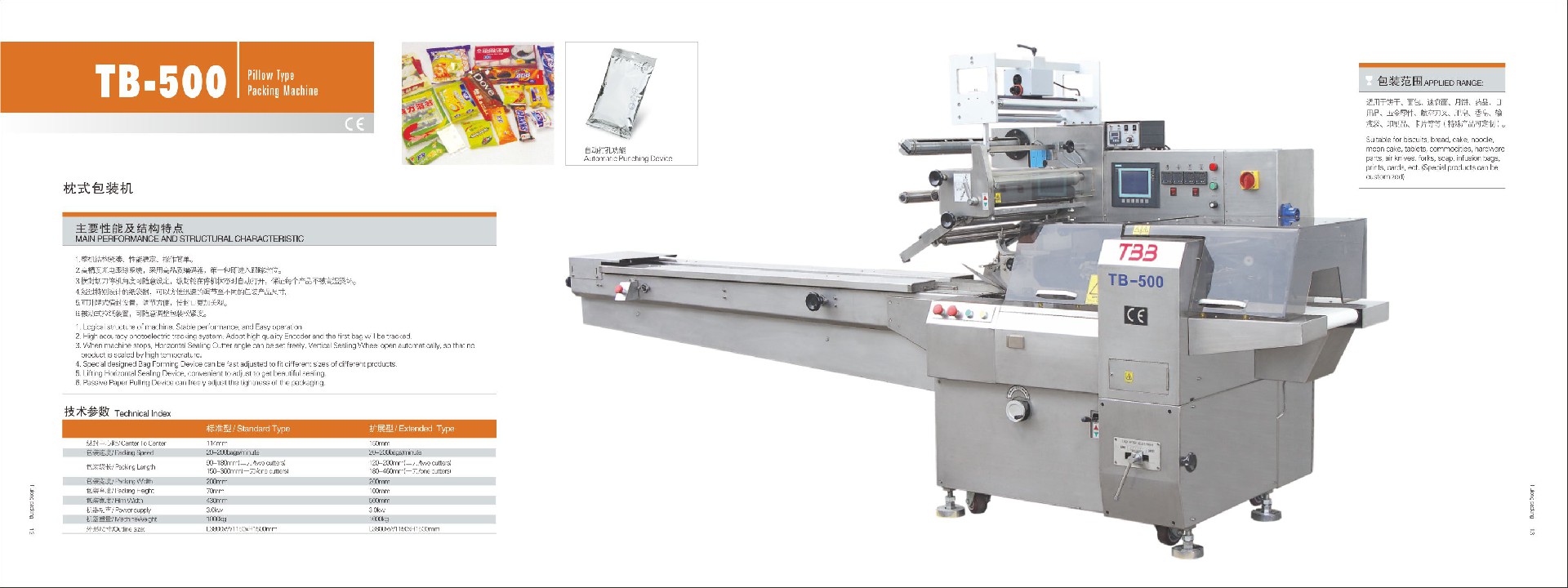

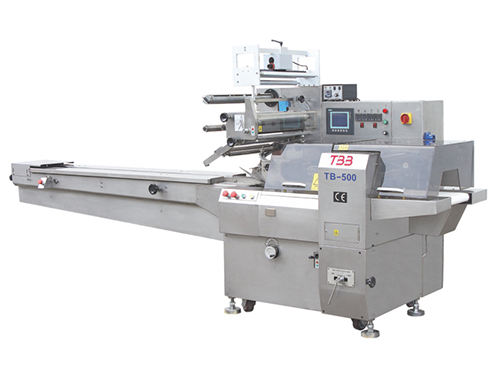

TB-500-Pillow Type Packing Machine

枕式包装机

主要性能及结构特点
MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC

整机结构紧凑、性能稳定、操作简单。
高精度光电跟踪系统，采用高品质编码器，第一包即进入跟踪定位。
横封切刀停机角度可随意设定，纵封轮在停机状态时自动打开，保证每个产品不被高温烫坏。
经过特别设计的纸袋器，可以方便迅速的调节至不同的包装产品尺寸。
可升降式横封设置，调节方便，使封口更加美观。
被动式拉纸装置，可随意调整包装松紧度。

1.Logical structure of machine, Stable performance, and Easy operation.

2.High accuracy photoelectric tracking system. Adopt high quality Encoder and the first bag will be tracked.

3.When machine stops, Horizontal Sealing Cutter angle can be set freely, Vertical Sealing Wheel open automaticallyso that no

product is scaled by high temperature.

4.Special designed Bag Forming Device can be fast adjusted to fit dfferent sizes of different products.

5.Lifting Horizontal Sealing Device, convenient to adjust to get beautiful sealing.

6. Passive Paper Plling Device can freely adjust the tightness of the packaging.

技术参数 Technical Index

	标准型/Standard Type	扩展型/Extended Type
纵封中心距/ Center To Center	114mm	150mm
包装速度/Packing Speed	20-200bags/minute	20-200bags/minute
包装袋长/ Packing Length	90-180mm(二刀(two cutters) 150-360mm(一刀/one cutters)	120-200mm(二刀/wo cuters) 180-460mm(一刀/one cutters)
包装宽度/ Packing Width 包装高度/ Packing Height 包装宽度/ Film Width	200mm 70mm 430mm	200mm 100mm 500mm
机器功率/Power Supply	3.0KW	3.0KW
外形尺寸/Outline Size	L3800xW1150xH1500mm	L3800xW1150xH1500mm
机器重量/Machine Weight	1000KG	1000KG

包装范围APPLIED RANGE:

适用于饼干、面包、速食面、月饼、药品、日用品、五金零件、航空刀叉、肥皂、香皂、输液袋、印刷品、卡片等等(特殊产品可定制)。

Suitable for biscuits, bread, cake, noodle,moon cake, tablets, commodities, hardware parts, air knives, forks, soap, infusion bags,prints, cards, ect. (Special products can becustomized)
