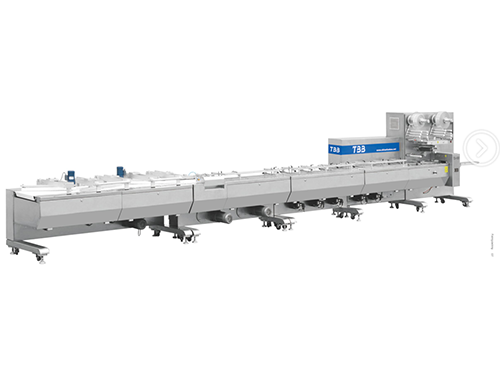

| 全自动理料枕式包装机 |
主要性能及结构特点 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
一、用途： 适用于巧克力、威化、蛋糕、香皂等 块状较规则物品的自动整理及包装，可配套自动分离机连线生产线实现无缝连接，自动化生产。
二、性能特点：
Suitable for Chocolate， Wafer， Cake， Soap， Lump Regular Products can be arranged and packaged，connect with the automatic separation machine to achieve the seamless connection，automatic production
Perfomance Characteristic 1.Good mechanical structuer design,combing with advanced intelligent eight-Axis Servo Motor special control system,for Smooth and easy running. 2.Through efficient automatic feeding system the products can be easily completed from the feeding to packing. 3.Servo motor drive and good man-machine interface,Easy operation,Low noise and easy maintenance,the running time can be dynamically adjusted,while teh macghine is running. 4.Packing film automatic connection function,Date printer Device. |
| 技术参数 Technical Index |
包装范围（产品尺寸） Packing Range(product size) | 长（L）15-130mm 宽（W）15-60mm 高（H）5-30mm |
| 包装速度/Packing Range(product size) | 0-800包（bao）/min |
| 包装膜最大直径/Film max Dia: | 300mm |
| 包装膜最大宽度/Film max Wid: | 180mm |
| 电源/Power Supply: | 220V |
| 总功率/Total Power: | 约14kw |
| 机器外形尺寸/Outline size: | 9m×0.9m×1.7m |
