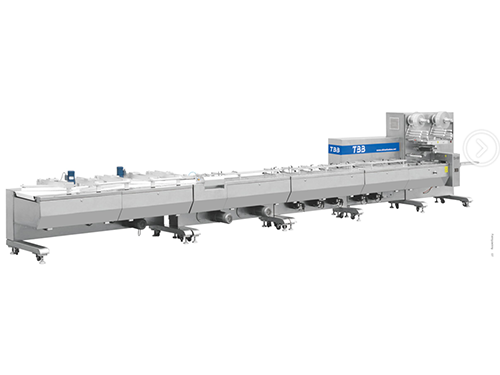

TB-900-全自动理料枕式包装机


全自动理料枕式包装机

主要性能及结构特点

MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC

一、用途:

适用于巧克力、威化、蛋糕、香皂等 块状较规则物品的自动整理及包装,可配套自动分离机连线生产线实现无缝连接,自动化生产。



二、性能特点:

  1. 良好的机械结构设计,结合最先进的智能化8轴伺服电机专用控制系统,使机器运行平稳

  2. 通过高效的自动理料系统使产品能轻松地完成从送料到包装的整个过程。

  3. 整机采用全伺服电机传动及良好的人机界面,操作简便,低噪音易维护,在运行状态时可作动态调整。

  4. 包装膜自动对接功能,日期打印装置。



     Function

Suitable for Chocolate,Wafer,Cake,Soap,Lump Regular Products can be arranged and

packaged,connect with the automatic separation machine to achieve the seamless

connection,automatic production



Perfomance Characteristic

1.Good mechanical structuer design,combing with advanced intelligent eight-Axis

   Servo Motor special control system,for Smooth and easy running.

2.Through efficient automatic feeding system the products can be easily completed

from the feeding to packing.

3.Servo motor drive and good man-machine interface,Easy operation,Low noise and

easy maintenance,the running time can be dynamically adjusted,while teh macghine

is running.

4.Packing film automatic connection function,Date printer Device.

技术参数   Technical Index

包装范围(产品尺寸)

Packing Range(product size)

长(L)15-130mm

宽  (W)15-60mm

高 (H)5-30mm

包装速度/Packing Range(product size)0-800包(bao)/min
包装膜最大直径/Film max Dia:300mm
包装膜最大宽度/Film max Wid:180mm
电源/Power Supply:220V
总功率/Total Power:约14kw
机器外形尺寸/Outline size:9m×0.9m×1.7m
